TM 9-2350-247-34
REPLACE ENGINE (M548A1) — Continued
0007 00

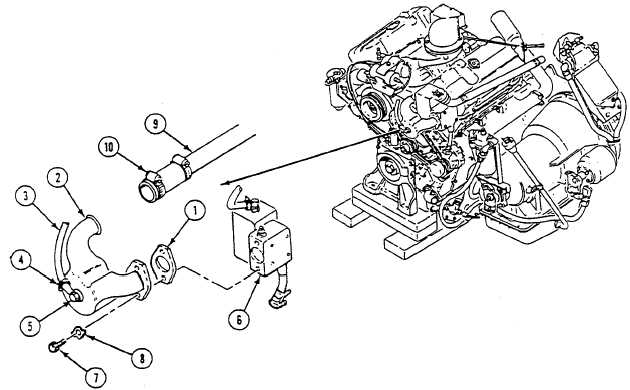

57. Apply a thin coat of sealing compound (WP 0080 00, Item 32) to both sides of gasket (1) before assembly.
58. Install deaeration elbow (2) with hose (3), clamp (4), elbow (5), and new gasket (1) on thermostat housing cover (6).
Secure with two screws (7) and new key washers (8).
59. Connect coolant tube (9) to deaeration elbow (2). Secure with clamp (10).
0007 00-42
