TM 9-2350-247-34
INSTALL AIR BRAKE KIT (M548A1) — Continued
0073 00

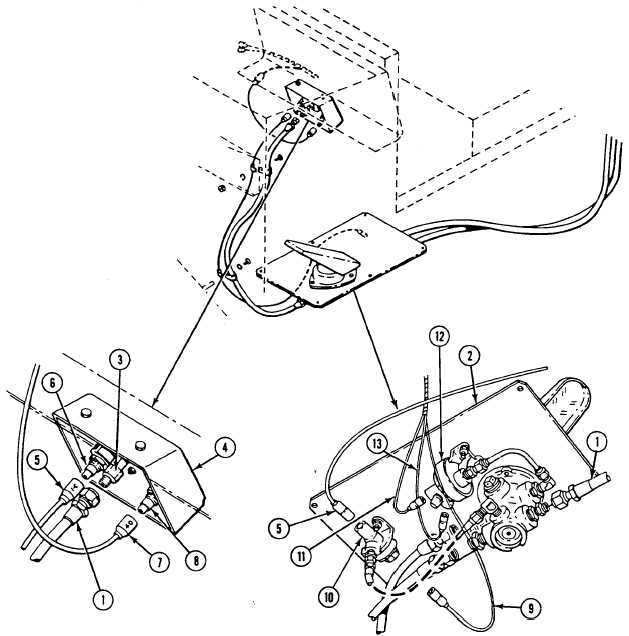

71. Connect circuit 1B lead (9) to air brake low pressure switch (10).
72. Connect circuit 75 lead (11) to stoplight switch (12).
73. Connect circuit 75A lead (13) to stoplight switch (12).
74. Install treadle valve (WP 0075 00).
0073 00-22
