REPLACE TRANSMISSION SHIFT TOWER WIRING HARNESS (M548A3) Continued

REPLACE TRANSMISSION SHIFT TOWER WIRING HARNESS (M548A3) Continued - TM-9-2350-247-34_221

REPLACE TRANSMISSION SHIFT TOWER WIRING HARNESS (M548A3) Continued - TM-9-2350-247-34_223

TM-9-2350-247-34 Carrier Cargo Tracked 6 Ton M548A12350010969356 (EIC: AEU) M548A3 2350013696081 (EIC: AE9) Manual
Page Navigation
184

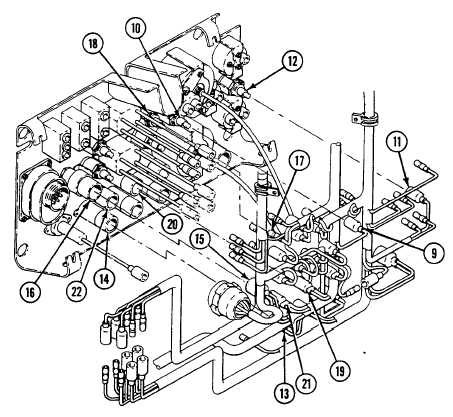

TM 9-2350-247-34 REPLACE TRANSMISSION SHIFT TOWER WIRING HARNESS (M548A3) — Continued 0022 00 6. Remove the following wiring harness leads from components on the instrument panel as follows: Disconnect Circuit From Component 40A (9) Panel light (10) 40B (11) Panel light (12) 10A/11 (13) Hand brake light (14) 14/14A (15) Start switch (16) 14A (17) Fuel pump switch (18) 10B/366 (19) Transmission low oil pressure light (20) 10C/323 (21) Transmission oil high pressure light (22) 7. Pull wiring harness into cab compartment, and remove wiring harness from carrier. 0022 00-4
