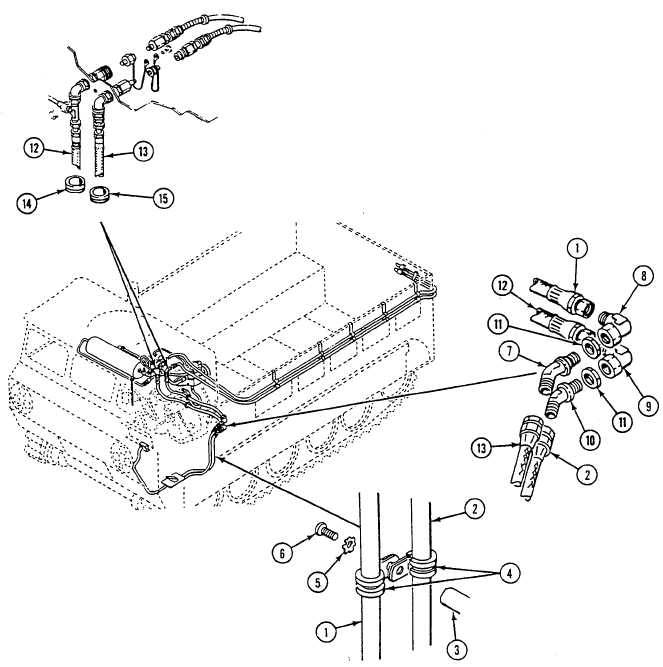

TM 9-2350-247-20-3 REPLACE AIR HOSES/TUBES/FITTINGS (M548A1) — Continued 0495 00 13. Install hose (1) and hose (2) on weld nut (3) with two clamps (4), new lock washer (5), and screw (6). 14. Connect elbow (7) to elbow (8) and elbow (9) to elbow (10). Tighten two jam nuts (11). 15. Connect hose (1) to elbow (8) and hose (2) to elbow (10). 16. Connect hose (12) to elbow (9) and hose (13) to elbow (7). 17. Install new grommet (14) and new grommet (15) on hose (12) and hose (13). 0495 00-13
