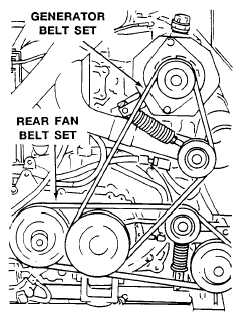

TM 9-2350-247-10 CHECK DRIVE BELTS TENSION (M548A1) — Continued 0067 00 5. Check generator drive and fan drive belts. a. Find the lower end of each belt idler adjusting rod inside slot on adjuster. b. If lower end of each belt idler adjusting rod is not between adjustment marks, drive belt needs adjustment. Notify unit maintenance. 6. Close power plant rear access panels (WP 0036 00). END OF TASK 0067 00-2
