CONNECT TOWED LOAD
0048 00
THIS WORK PACKAGE COVERS:
Connect Towed Load (page 0048 00-1).
INITIAL SETUP:
Maintenance Level
Operator
Personnel Required
Driver (2)
Equipment Condition
Engine stopped (WP 0023 00), (WP 0024 00)
Carrier blocked (WP 0038 00)
CONNECT TOWED LOAD
NOTE
The carrier can tow equipment or a cargo trailer weighing up to 14,000 lbs (6,350 kg).
1.
Position carrier so towing pintle lines up with pintle eye on drawbar or tow bar of load.
2.

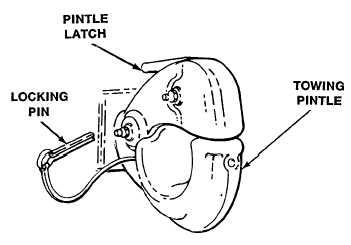

Remove locking pin, pull up on pintle latch, and open pintle.
3.
Hook drawbar or tow bar eye on pintle, pull on latch, and close pintle.
