TM 9-2350-277-20-1
GENERATOR MALFUNCTIONS AS INDICATED BY BATTERY/GENERATOR
INDICATORContinued
0025 00
B2Y

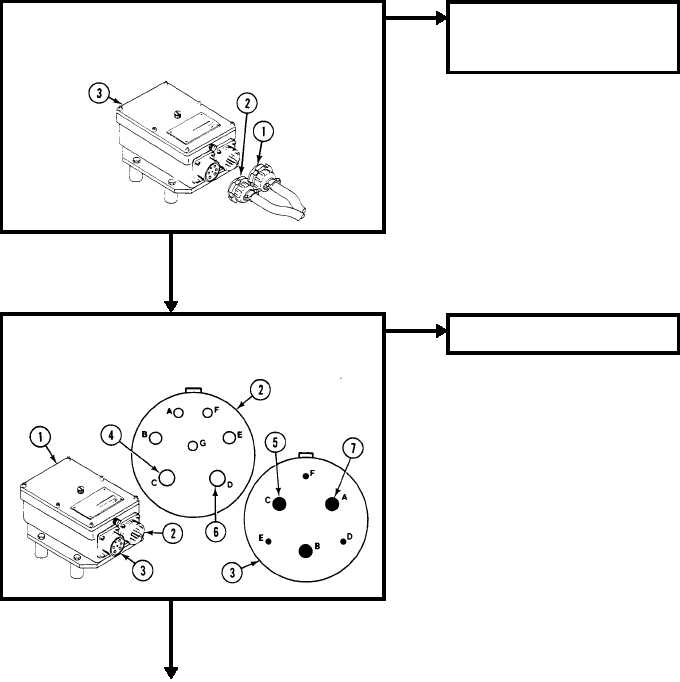

1. Remove harness 12349881 plugs (1) and (2) from voltage
regulator (3).
2. Inspect all plug and jack pins for corrosion or damage.
3. Are plugs and jacks free from corrosion and damage?
YES
NO
B2YN
1. Faulty harness 12349881 plug or
jack. Beyond unit maintenance
repair.
2. Notify supervisor.
B3Y
1. Measure resistance on regulator (1), between jacks (2) and (3);
Measure between socket C (4) and pin C (5). Measure between
socket D (6) and pin A (7).
2. Does VTM read 0 ohms?
YES
NO
B3YN
1. Replace regulator (WP 0257 00).
2. Verify no faults found.
0025 00-4
