TM 9-2350-261-20-4
REPLACE M8A3 NBC CABLES, SWITCH ASSEMBLY, AND BRACKETS
0676 00
(M577A2 ONLY) -- Continued
7.

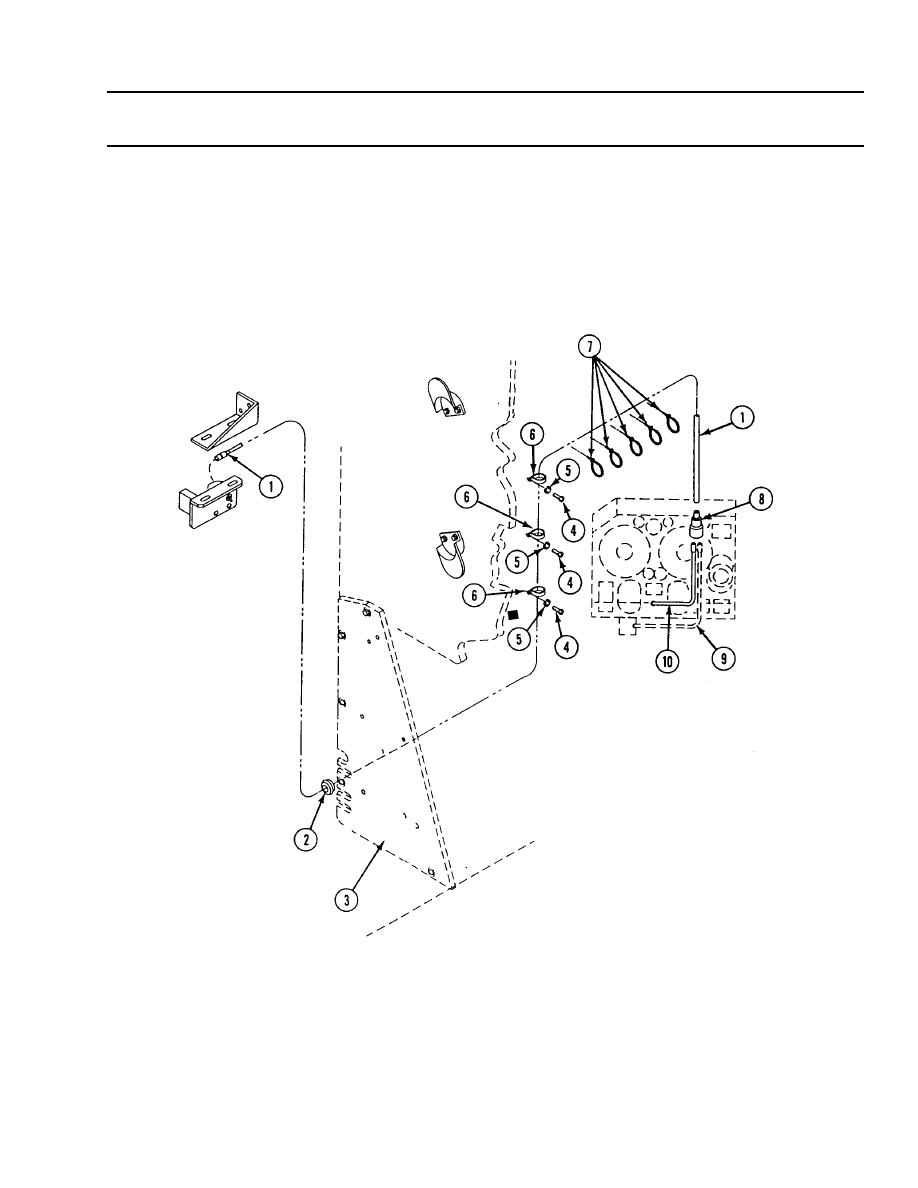

Pull cable (1) with grommet (2) from mount plate (3). If damaged, discard grommet.
Remove three screws (4), lockwashers (5), and clamps (6) from driver's rear bulkhead. Remove clamps from cable
8.
Cut five tie straps (7) securing cable (1) to adjacent wiring harness. Discard tie straps.
9.
10. Remove cable (1) from connector (8).
11. Disconnect circuit 10 lead (9) and lead (10) from connector (8).
0676 00-3
