TM 9-2350-261-20-4
REPLACE COOLANT HOSES AND FITTINGS -- Continued
0646 00

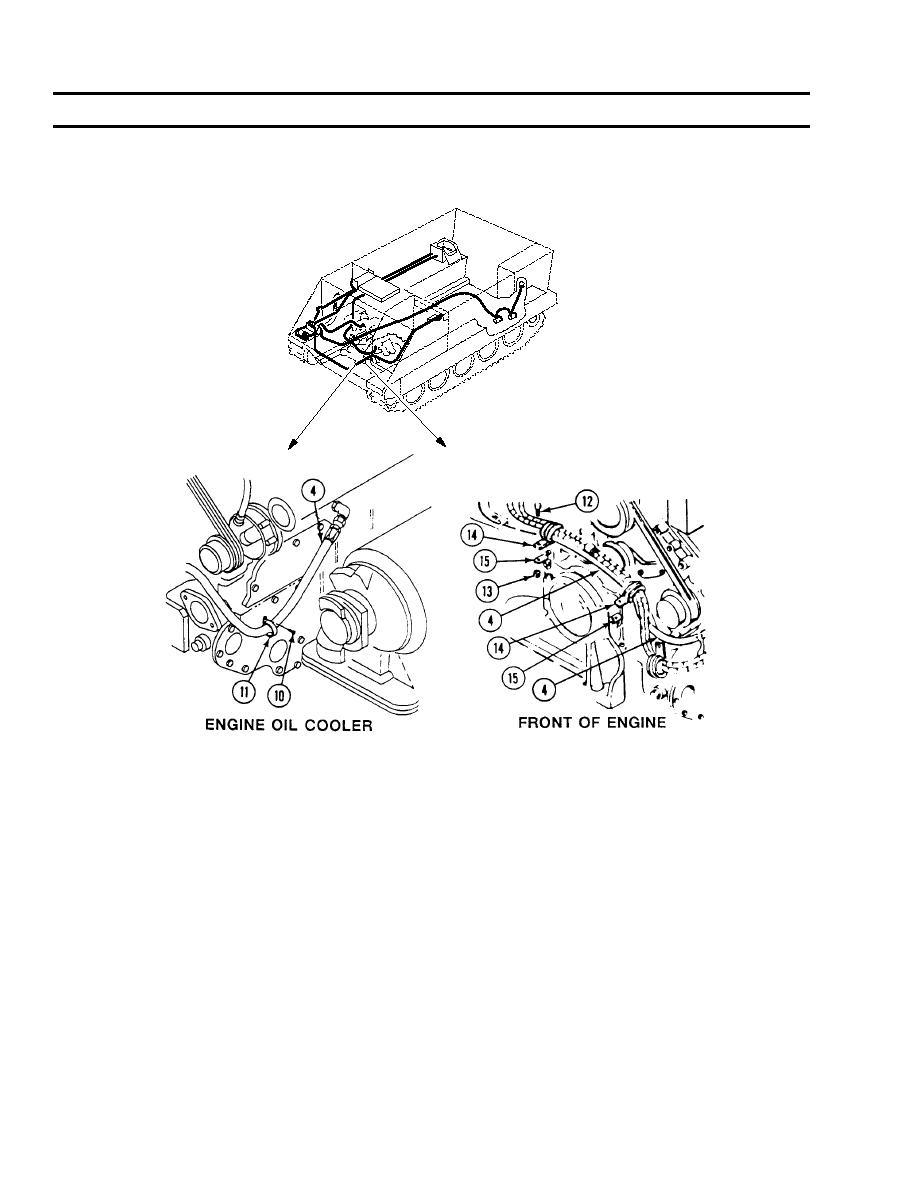

13. Remove screw (10) and clamp (11) from oil cooler housing. Remove clamp from hose (4).
14. Remove two screws (12), nuts (13), and clamps (14) from two engine brackets (15). Remove clamps from hose (4).
0646 00-4
