3. From outside carrier, open
combat cover.
4.
5.
6.
CAUTION
Contamination can damage fuel
system. Remove dirt and water
from fuel filler area before
opening fuel filler cap.
Clean off dirt and water that
could get into filler neck. Use
wiping rag (Item 5, App D) .

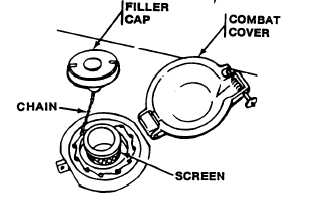

Unscrew filler cap.
Check screen in filler neck. If
there is any dirt in screen, take
screen out and clean it. Install
screen before refueling.
TM9-2350-261-10
WARNING
7.
8.
9.
10.
11.
Insert nozzle in fuel filler neck.
Fill fuel tank allowing 5 inches
in fuel filler neck for expansion.
Remove fuel nozzle from fuel
filler neck.
Install fuel filler cap. Make sure
keeper chain is all inside so cap
goes on tight.
Close combat cover.
Lock combat cover from inside
carrier by turning thumbscrew
to the right. Tighten wingnut.
THUMB
WINGNUT
GO TO NEXT PAGE
Change 2
2-187
