TM 9-2350-247-34
INSTALL TURN SIGNAL KIT Continued
0076 00

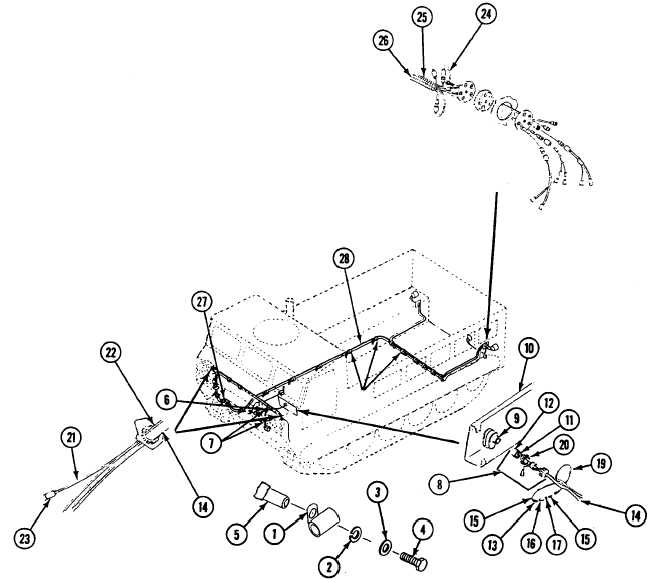

18. Route circuit 461 lead (21) of harness (22) along main wiring harness (14) to left headlight well.
19. Route circuit 460 lead (23) of harness (22) along main wiring harness (14) to right headlight well.
20. Route circuit 22-460 lead (24) of wiring harness (25) along rear main wiring harness (26), through grommet (27) in cab
floor, along right side of carrier, and across front of fuel compartment.
21. Secure wiring harness (28) to main wiring harness (14) across front of carrier and back to fuel compartment with
straps (7). Place strap next to each harness clamp as required.
22. Install instrument panel (see your -20).
23. Disconnect circuit 514 and 515 leads from left infrared headlight (see your -20).
0076 00-12
