TM 9-2350-247-34
FINAL TEST COOLANT HEATER Continued
0064 00

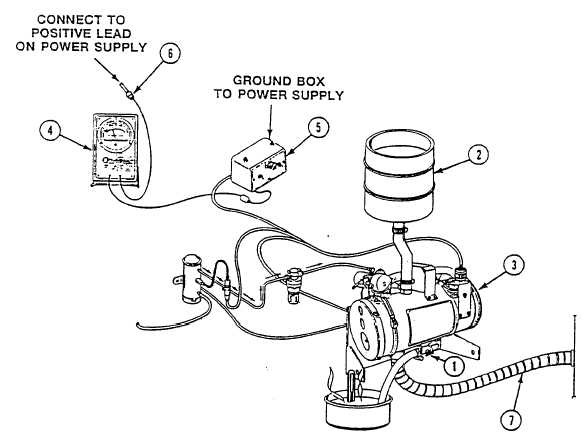

COOLANT SYSTEM
2.
Do not use more than 5 gallons (18.93 l) of coolant. Use same coolant as in carrier. Do not use water.
3.
Change coolant quickly. Allow coolant to cool between tests. The coolant system should have a shutoff valve (1).
4.
Vent the coolant container (2) for air. The coolant container may remain open or closed. Use of a thermo-siphon type
flow is allowed. No pump is required.
ELECTRICAL WIRING
5.
Wire up heater (3) using regular wiring harness. Connect a multimeter (4) across circuit between hot lead of control box
(5) and power source (6).
6.
Use a fully charged battery for power source.
EXHAUST COLLECTOR
7.
Conduct heater exhaust away from test area. Use an exhaust extension made of flexible hose (7) not more than 10 feet
(3.1 m) long.
0064 00-3
