REPAIR MULTIPIN CONNECTORS Continued

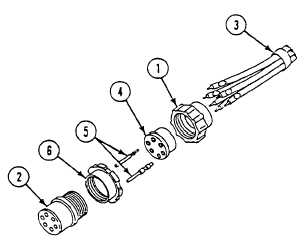

INSTALL CABLE CONNECTOR
If replacing lead, cut new wire from bulk supply. Measure original length, gauge, and type of
Strip insulation from leads of cable (3) to uncover just enough wire to fill well in contact (5).
Slide retaining nut (1) and coupling nut (6) on cable (3).
Push leads of cable (3) through grommet (4) and insert in new contacts (5).
Make sure leads pass through proper lettered hole in grommet.
Solder leads in contacts (5) and press contacts into grommet (4). Check leads for resistance.
Align and install grommet (4) in plug (2). Secure with retaining nut (1).
END OF TASK
