INSTALL VEHICLE COMPARTMENT HEATER KIT II OR III (M548A1) Continued
0056 00

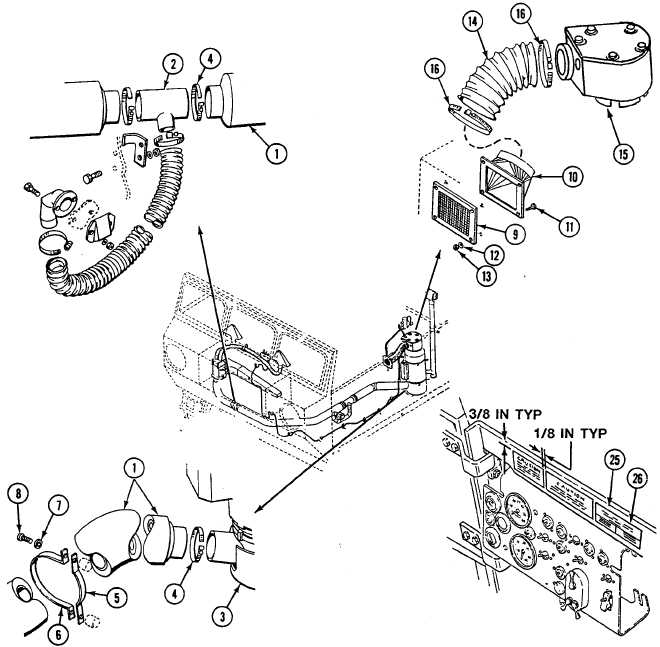

45. Install rear outlet hose (1) on tee (2) and base assembly (3) with two clamps (4).
46. Install support (5) and strap (6) on rear outlet hose (1) and cab floor with two washers (7) and screws (8).
47. Install inlet grille (9) and hose adapter (10) on bulkhead behind drivers seat with four screws (11), eight washers (12),
and four nuts (13).
48. Install 24 inch (61 cm) intake hose (14) on inlet elbow (15) and hose adapter (10) with two clamps (16).
