REPLACE MAIN WIRING HARNESS Continued
0025 00

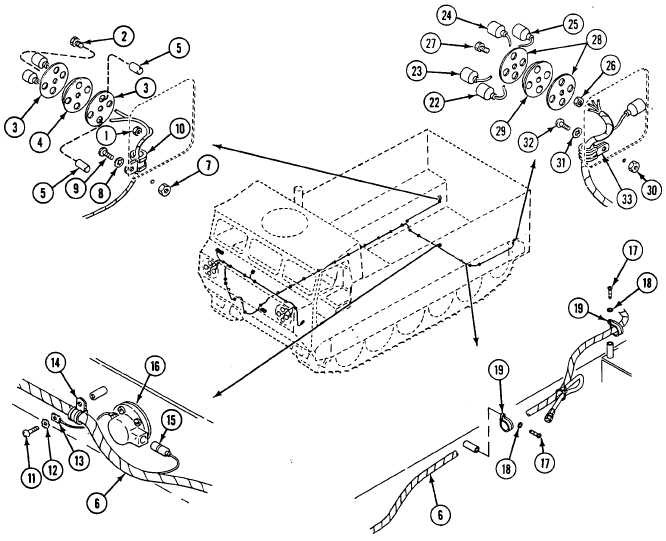

33. Remove four screws (17), lock washers (18), and clamps (19) securing main wiring harness (6) to hull. Discard
lock washers.
34. Disconnect circuit 21 lead (20), circuit 22 lead (21), and circuit 24 lead (22) from taillight-to-trailer receptacle
wiring harness.
35. Disconnect circuit 23 lead (23) from trailer wiring harness.
36. Remove nut (24), screw (25), two bushing retainers (26), and bushing (27) from hull. Remove bushing from main
wiring harness.
37. Remove nut (28), lock washer (29), screw (30), and clamp (31) securing main wiring harness to hull. Discard
lock washer.
38. Pull main wiring harness from two taillight well openings, through opening in cab floor, and remove harness from carrier.
