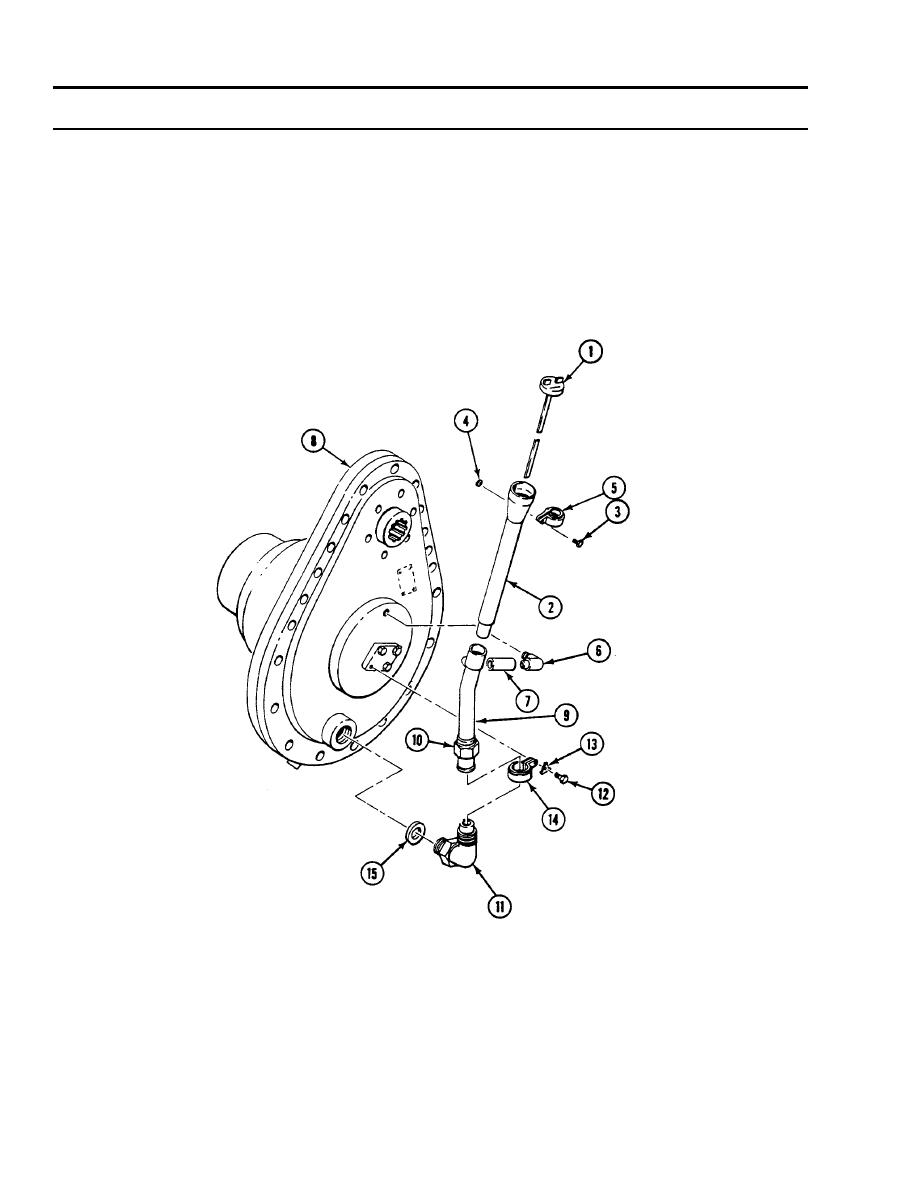

REPLACE FINAL DRIVE VENT, FILLER TUBE, AND FITTINGS (LEFT SIDE) -- Continued
0330 00
REMOVAL
1.
Turn gauge rod (1) to the left and remove from filler neck (2).
2.
Remove screw (3), lock nut (4), and clamp (5) from filler neck (2). Discard lock nut.
3.
Remove elbow (6) and vent tube (7) from final drive (8) and extension tube (9).
4.
Loosen nut (10) on elbow (11).
5.
Remove screw (12), tab washer (13), and clamp (14). Remove extension tube (9) from elbow (11). Discard tab washer.
6.
Remove elbow (11) and preformed packing (15) from final drive (8). Discard preformed packing.
