TM 9-2350-247-20-2
REPLACE FUEL PUMP WIRING HARNESS (M548A3) -- Continued
0302 00
3.

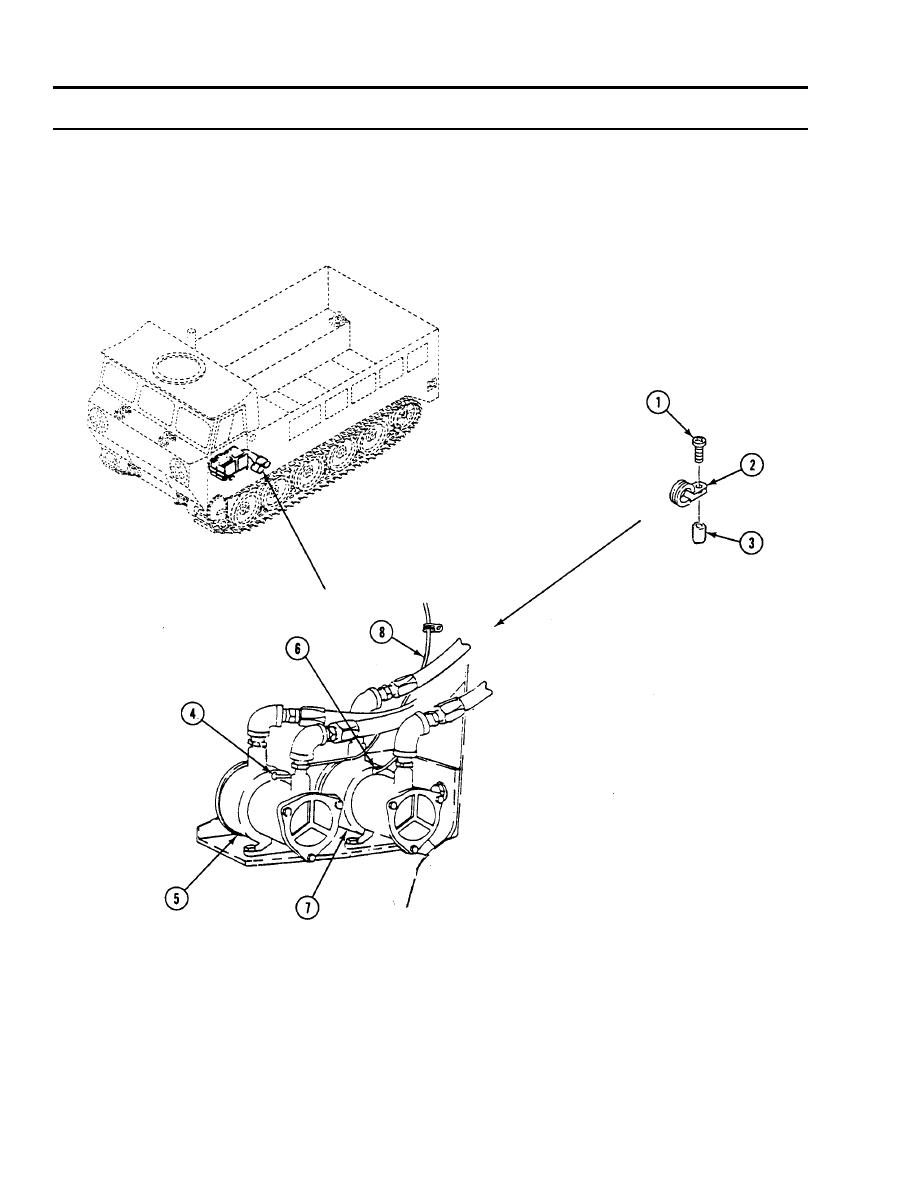

Remove screw (1) and clamp (2) from weld nut (3) on hull.
4.
Disconnect opposite end of circuit 77A lead (4) from front fuel pump (5).
5.
Disconnect opposite end of circuit 78A lead (6) from rear fuel pump (7).
6.
Remove fuel pump wiring harness (8) from carrier. Have helper assist.
0302 00-2
