TM 9-2350-247-20-2
REPLACE THROTTLE PEDAL LINKAGE (M548A1) -- Continued
0197 00
5.

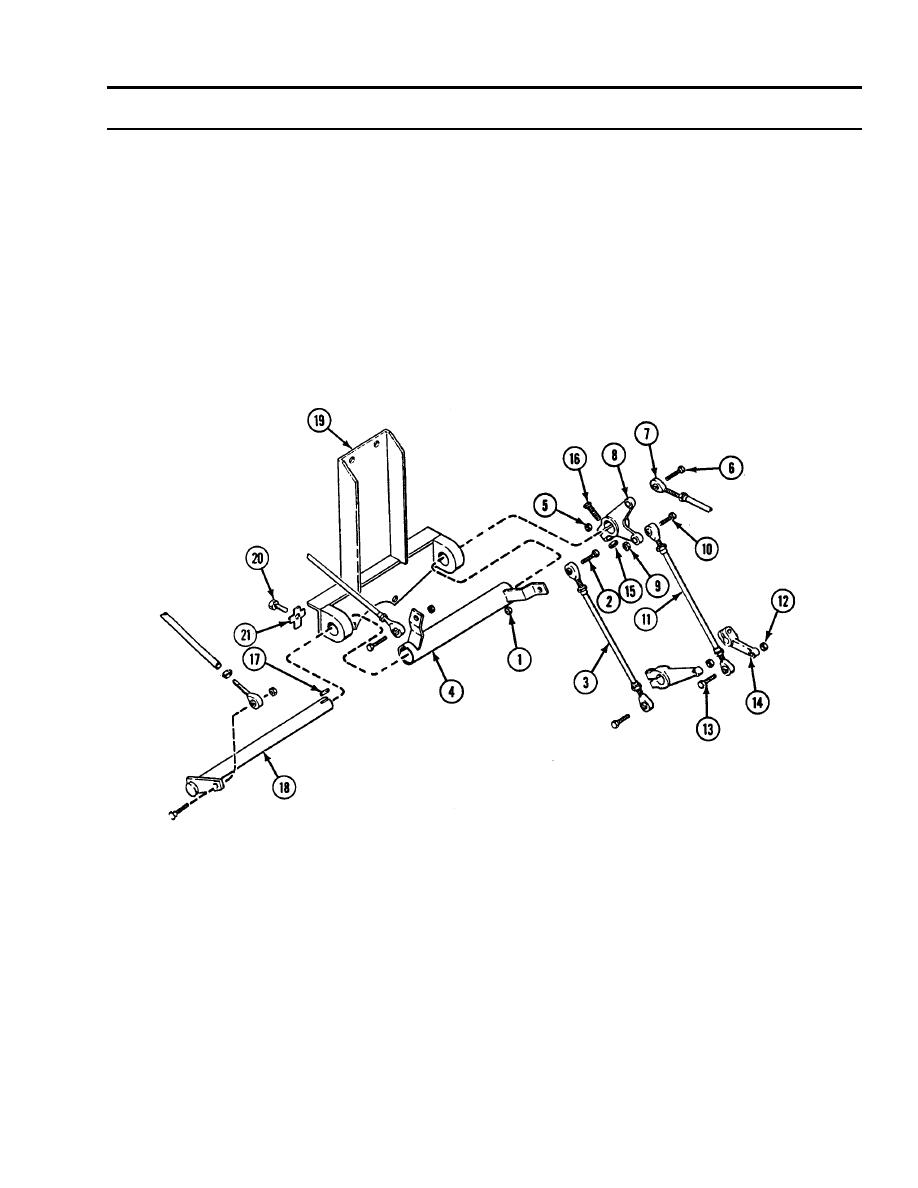

Remove lock nut (1) from screw (2). Remove range selector link (3) from outer cross shaft (4). Discard lock nut.
6.
Remove lock nut (5) from screw (6). Remove throttle control link bearing (7) from bellcrank (8). Discard lock nut.
7.
Remove lock nut (9) from screw (10). Separate bellcrank (8) from transmission throttle link (11). Discard lock nut.
8.
Remove lock nut (12) from screw (13) Separate transmission throttle link (11) from transmission throttle valve arm (14).
Discard lock nut.
9.
Remove lock nut (15) from screw (16). Discard lock nut.
10. Remove bellcrank (8) and key (17) from inner cross shaft (18).
11. Remove inner cross shaft (18) from outer cross shaft (4) and cross shaft bracket (19).
12. Remove two screws (20) and key washers (21) from cross shaft bracket (19). Remove cross shaft bracket from
transmission.
0197 00-3
